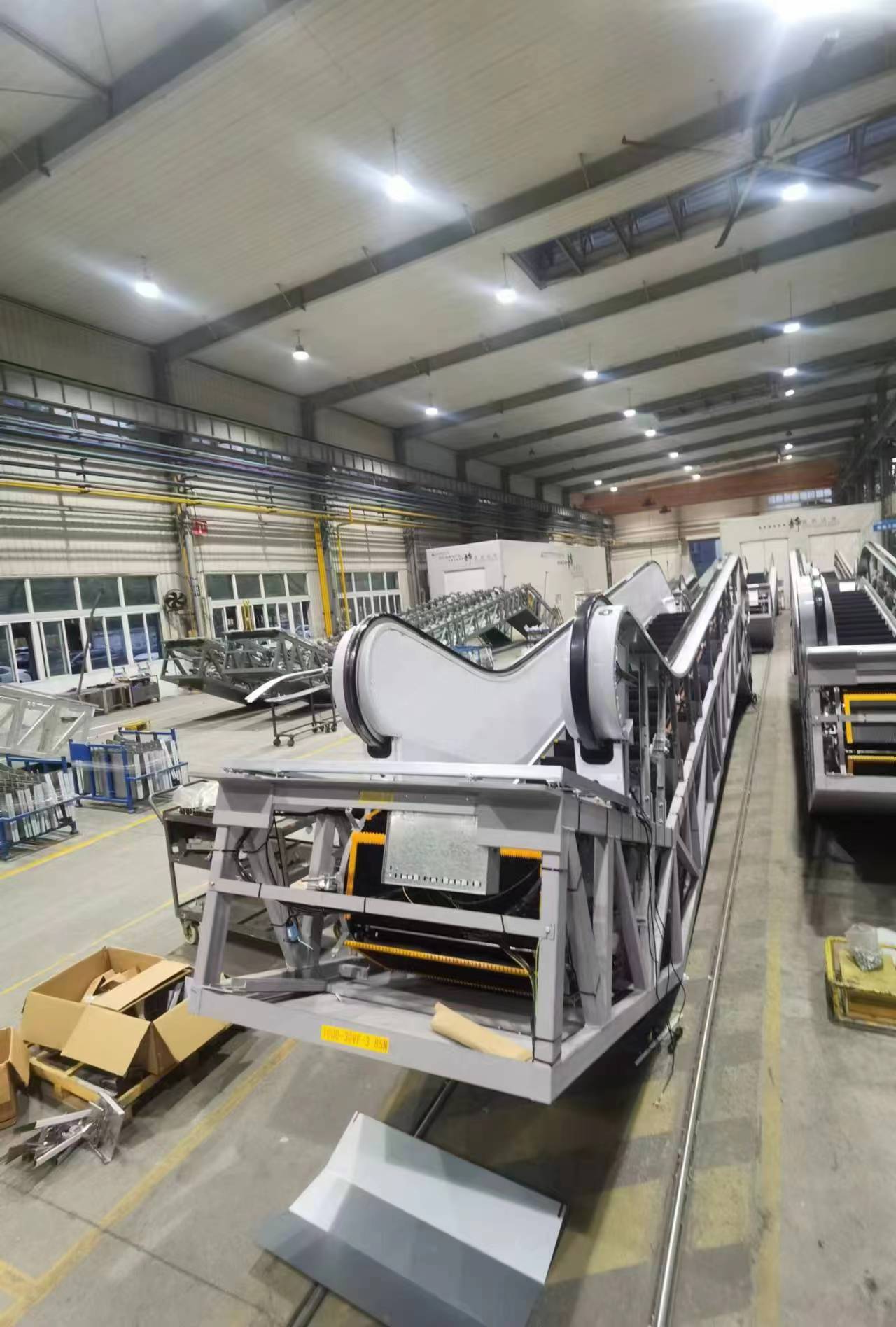

PUBLIC ESCALATOR1PUBLIC ESCALATOR1

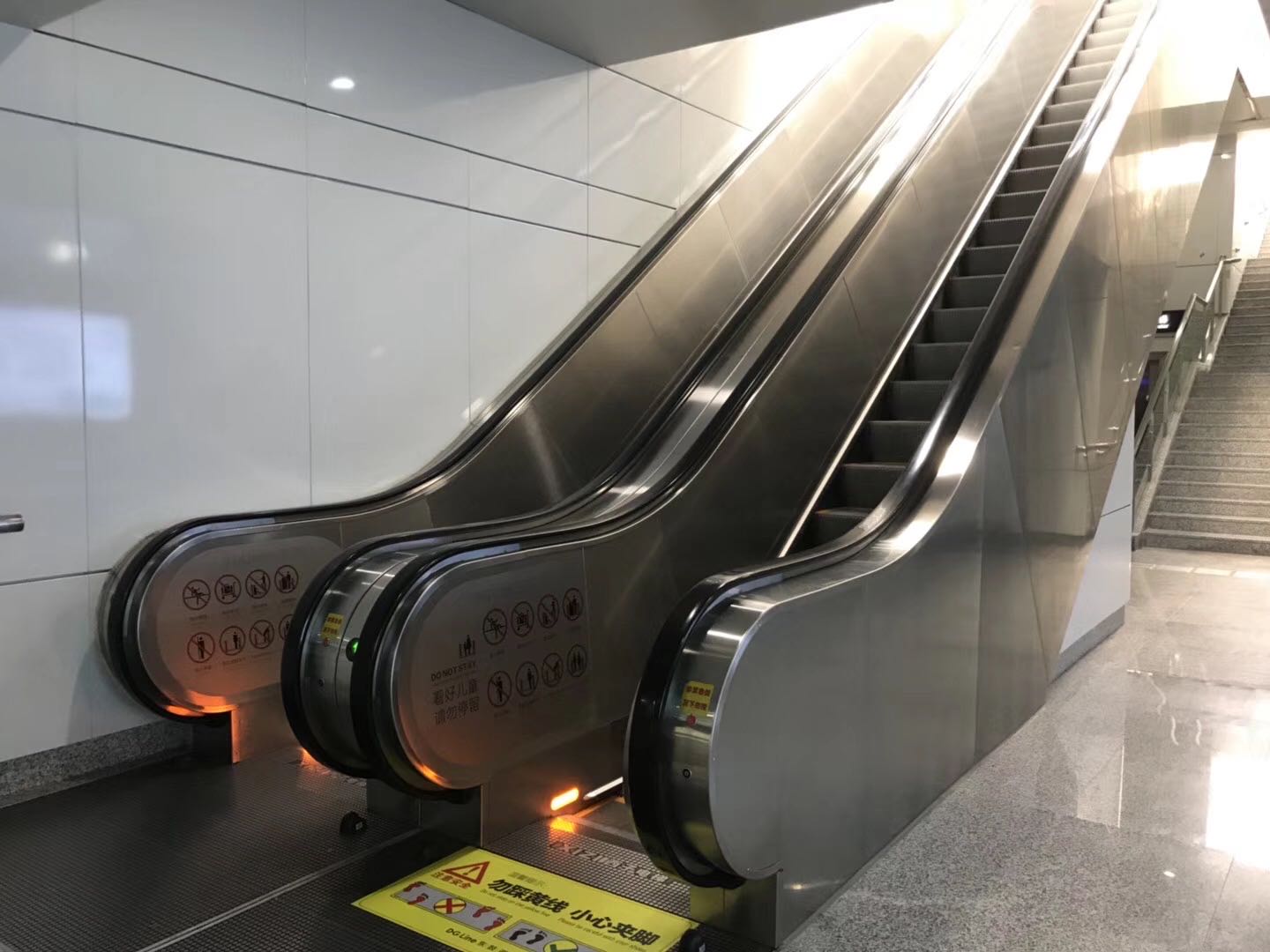

PUBLIC ESCALATOR2PUBLIC ESCALATOR2

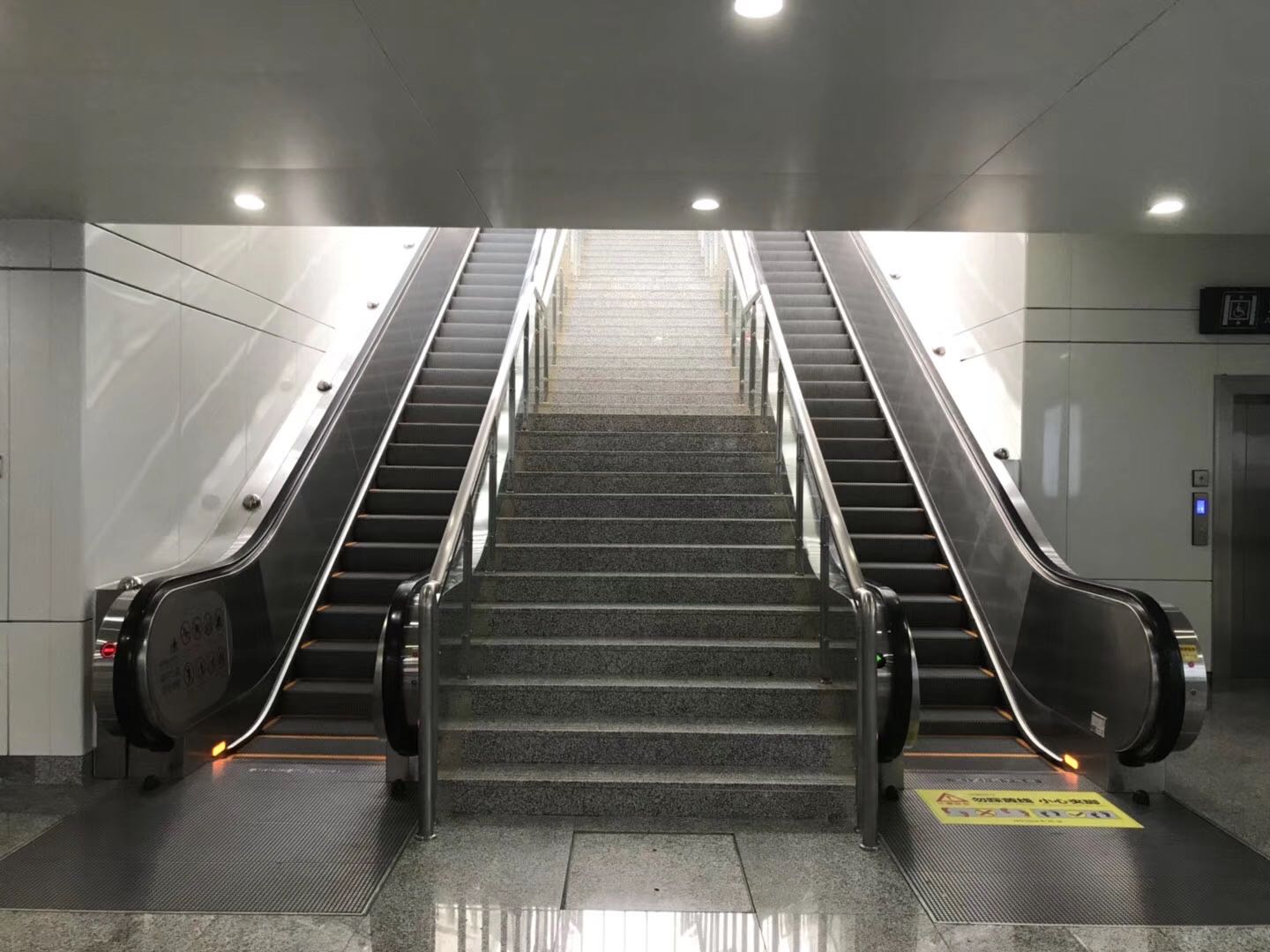

PUBLIC ESCALATOR3PUBLIC ESCALATOR3

NIJIFUJI heavy-duty public traffic type escalator is aspecialy custimzed heavy-duty escalator for public traffic,excellent product quality,superior operating performance and leading security,with maximum lifting height of 30 meters, able to fully meet the strict carrying requirements of high lifting height, great traffic and long transport time.Providing the best solution for the subways,railway stations,airports and other public transportation areas.

TypeModelAngleRise height HInstallation siteHorizontal
step number		Running
speed		The safety
coefficient of main
components		Truss deflectionStep roller
Public trafficNJ-M30°H≤12mIndoor/outdoorThree horizontal0.5m/s
0.65m/s		>5<1/1000φ80mm
27.3°H≤12mIndoor/outdoorThree horizontal
23.2°H≤12mIndoor/outdoorThree horizontal
NJF-M30°H≤16mIndoor/outdoorThree horizontal
27.3°H≤16mIndoor/outdoorThree horizontal
23.2°H≤16mIndoor/outdoorThree horizontal
Heavy duty
public traffic		NJW-L30°H≤16mIndoor/outdoorFour horizontal0.5m/s
0.65m/s
0.75m/s		>8<1/1500φ100mm
External type
NJW-AH≤30mFour horizontal
