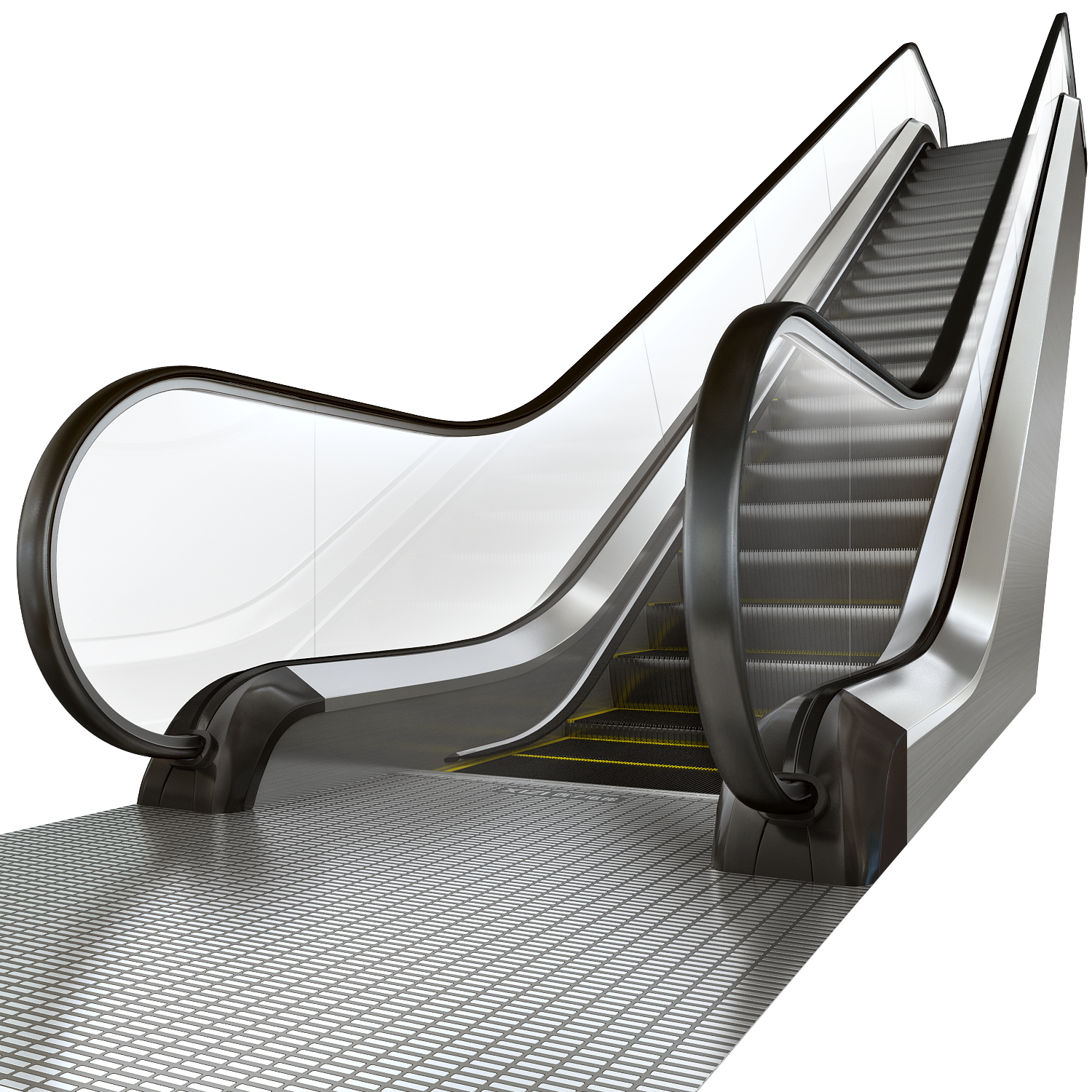

The commercial type escalator is based on national standard GB16899-2011 international standard EN115 fully applied escalator industry advanced technology design and manufacturing. Adopts advanced microcomputer control system, high strength of truss structure, perfect protection, make safety, reliability and comfort product. Fully satisfy the requirement of market, modern industry, hospital, hotel, CBD, services and large shopping center.
Specifications:
Rise: <=8000mm
Inclination: 30︒/35︒
Rated speed: 0.5m/s
Step width：1000/800/600mm
Main configuration:
Controller: Micro control
Truss: Deflection 1/750(1/1000, 1/1500)
Machine: Turbo-worm/ Helical gear
Chain: Roller inside
Step: St. steel/ Aluminum alloy
Roller: Polyurethane
Main drive: Big friction wheel
Side panel: Overall welding
Track system: Profile rail
Handrail: C type
Handrail guide rail: St. steel/ Aulminum ally
Balustrade: Toughened glass/ St. steel
Skirt panel/Decking: St. steel
Lubrication system: Electromagnetic pump/Gear pump
Handrail entry: Aluminum alloy
Floor plate: St. steel/Aluminum alloy
Comb: Aluminum alloy/Engineering plastics
CONTROL SYSTEM
- Adopts the comprehensive promotion of 32-bit microprocessor,
the control system is fully functional.
- A full range of security features to protect(safety integrity level sIL2).
More than double CPU design.
Self-study, speculation.
Independent power frequency switching function.
MACHINE
- Professional research and development of the machine team is committed to the design concept of excellent quality, to create unique mature system.
- Compact, high efficiency, strong power,realize the flagship process.
- Advanced manufacturing technology, high service life, brake system with brake open
inspection, imported brake lining and motor overheating protection, make safer, more reliability and longer service life, reliable operation.
- The built-in flywheel can effectively prevent contact, high protection class.
MAIN DRIVE
- High strength alloy material, precision manufacturing, good synchronization, high safety coefficient.
HANDRAIL DRIVE
- Big friction drive, the super drive power of handrail ensure handrail bet and step synchronization operation.
TRUSS
- Stablewelding truss structure,truss strength through ANSYS finite element analysis, safer and more reliable.
- Indoor truss through ant-corrosionspraying processing outdoor truss galvanizedprocessing.
- Pass EN1090 welding certification, welding reached wold leading level
CHAIN
- High strength step transmission chain, can greatly meet the requirements of use, the design life time reach 70000 hours.
